NOTE: The Water Witch comes in a kit with a 24V AC solenoid valve.
It is highly recommended that you install the solenoid which was provided with the Water Witch for maximum operational compatibility.
Other solenoids are not guaranteed to work.
Changing default settings

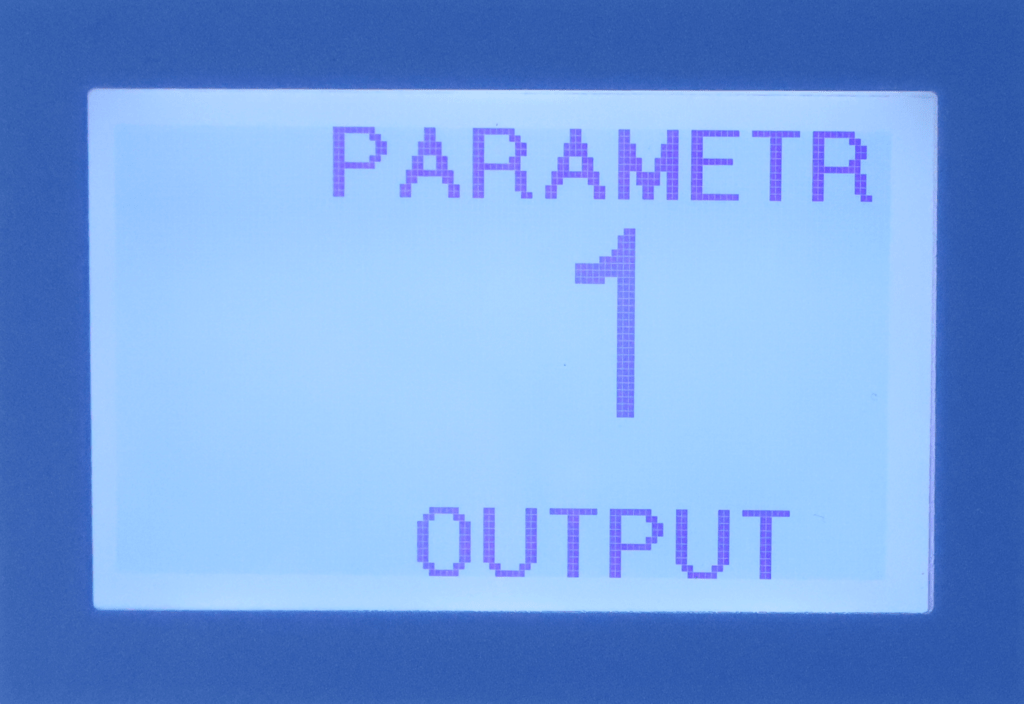

While the control box is in AUTOMATIC mode, hold ↑ and ENTER for 3 seconds to open the parameter configuration screen.

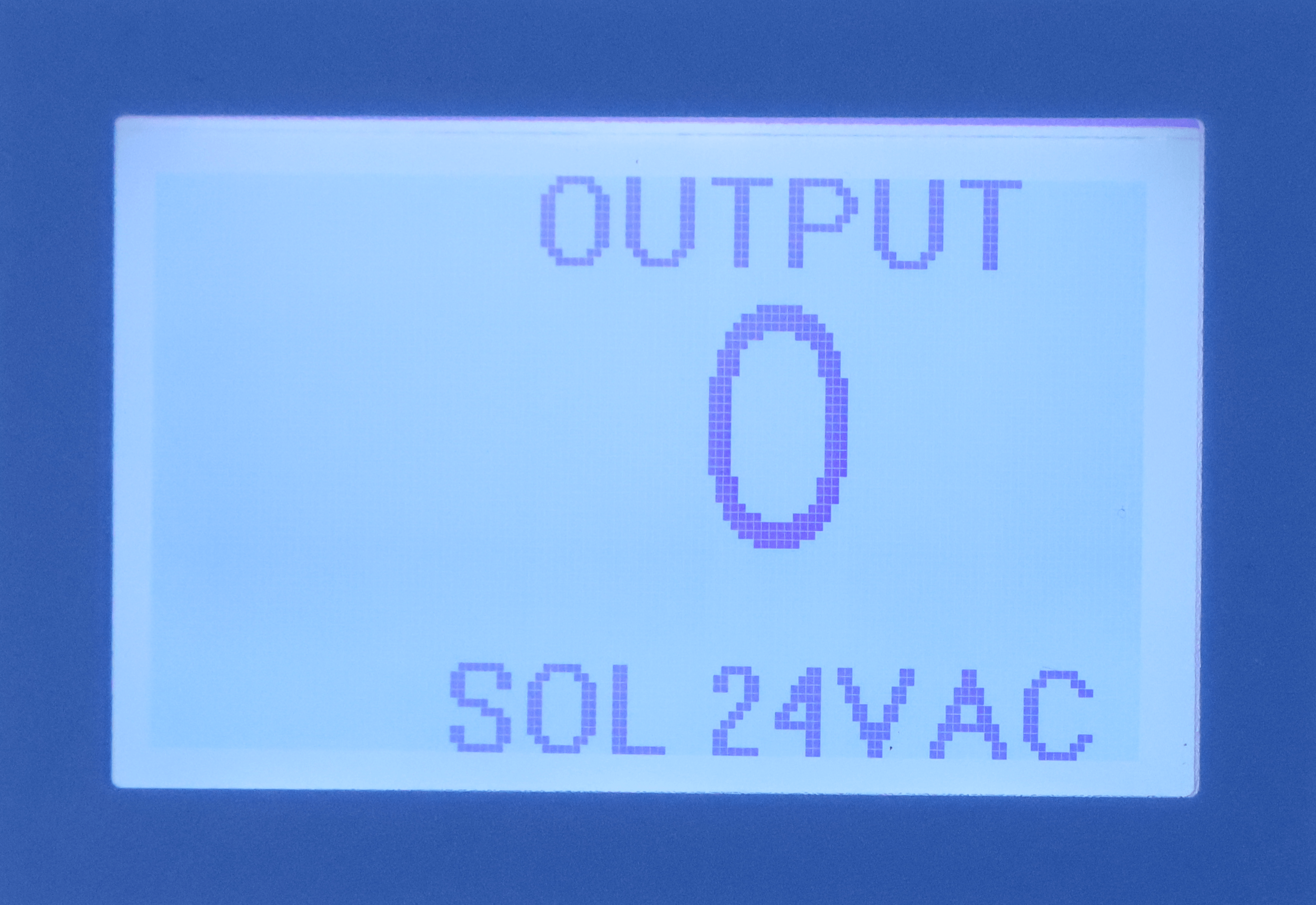

Select OUTPUT (parameter 1) and press ENTER.
Choose from the options provided.
Code Name Description 0 SOL 24V AC 24V AC Solenoid 1 SOL 12V DC 12V DC Solenoid 2 SOL COMM Commercial grade 24V AC Solenoid 3 RLY 12V DC 12V DC Relay Switch
After setting the configuration to match your solenoid, power cycle your control box to save the settings to memory.
